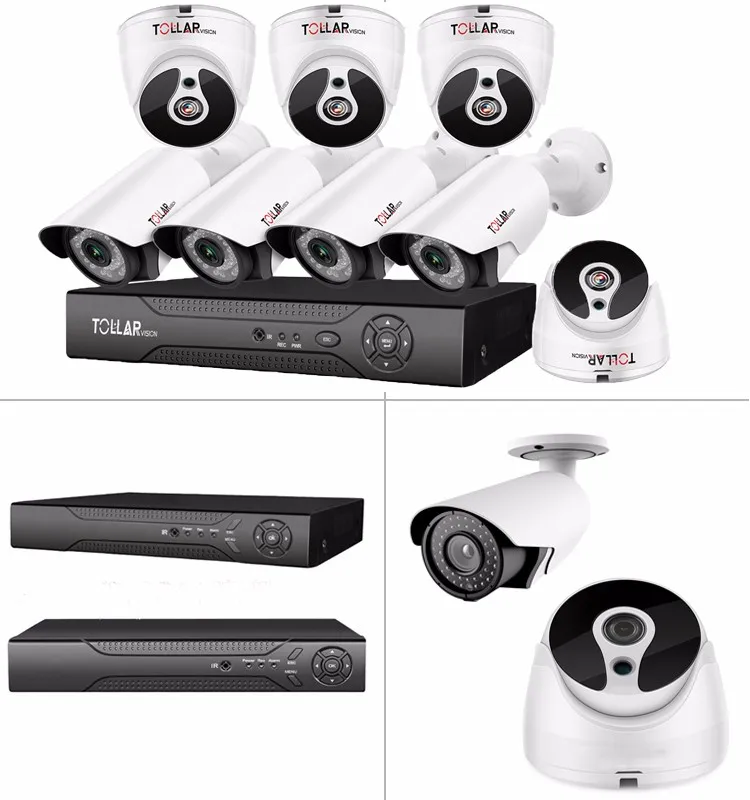

8CH 1080p night vision security camera system ahd cctv kit

FOB Reference Price:Get Latest Price
US $1-180 / Sets | 1 Set/Sets night vision security camera system sample is in stock (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
tollar
Model Number:
TL-AHD8CH KIT
Type:
night vision security camera system
Video Resolution:
720p/960p/1080p
Signal System:
PAL\NTSC
Video output:
1CH VGA/1CH HDMI/8CH BNC
IR Leds:
36pcs
Lens:
3.6mm fixed lens
IR Distance:
30m
Warranty:
2 Years
Certificate:
CE/ FCC/ RoHs
Power Supply:
DC12V
Supply Ability
Supply Ability:
1000 Set/Sets per Day night vision security camera system OEM Service
Packaging & Delivery
Packaging Details
4pcs in a box, 6kits in one carton
Port
Shenzhen
Lead Time :
Depens on QTY

8CH  1080p  night  vision  security  camera  system  ahd  cctv  kit







Camera Features:
(1) 1/2.8" CMOS  image senor;
(2) 8CH 720P/960P/1080P  AHD  Kit  optional;
(3) 3.6/6mm optional;
(4) IR distance 20-30M;
(5) Plastic dome 24IR  leds. Metal bullet, 36 IR Leds.
(6) Can be widely used in 24 hours monitor sites such as hotels, factories, shopping malls, gas stations and so on.



DVR Features:
1. 8 Channel 1080N 4 in 1 ( AHD/TVI/CVI/CVBS)

2. HDMI 1080P output

3. Video input: 8CH BNC, 1CH  VGA +1HDMI Output

4. Support Backup: USB 2.0 , Moved Hard Disk, USB,Writer, Network

5. Support 1*4TB

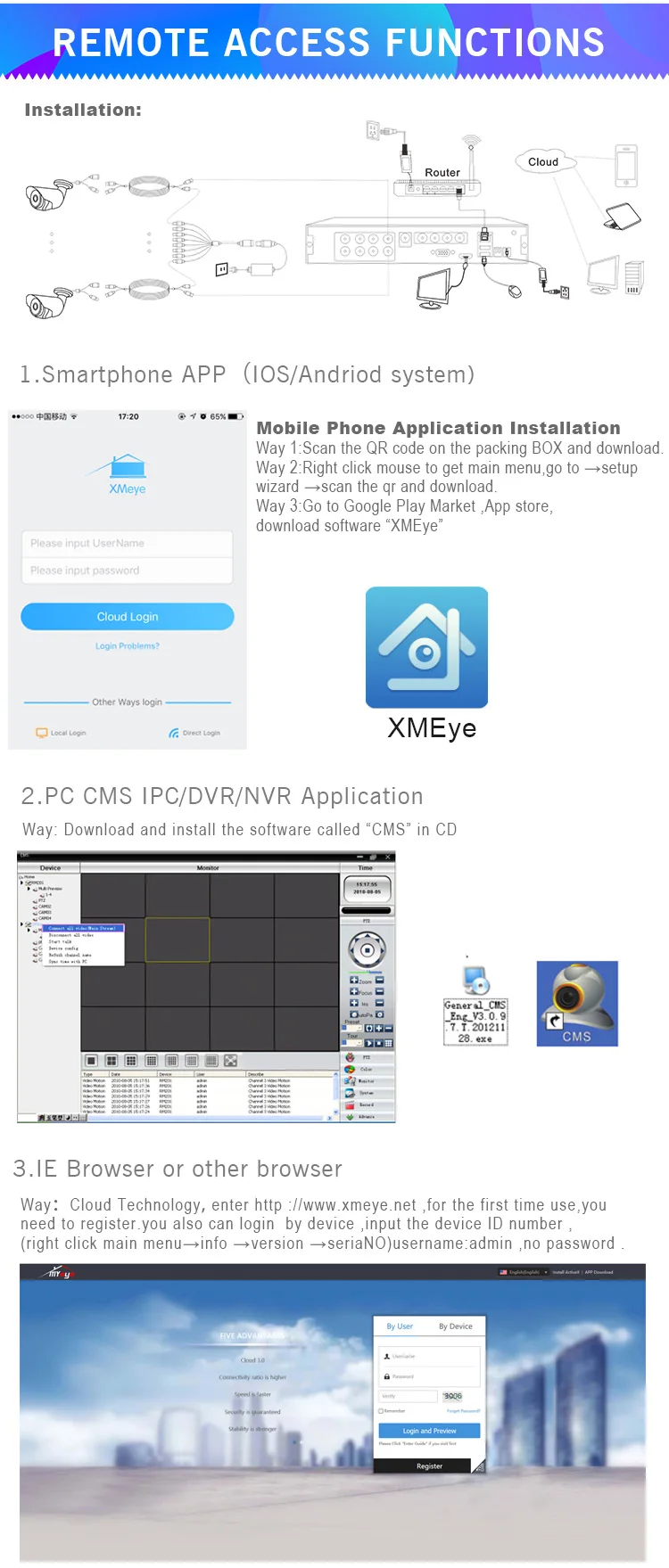

6. PC  Monitoring  software CMS & sellphone monitoring  software MYEYE




8CH 1080p night vision security camera system ahd cctv kit

Specifications:



Model

TL-CK8008

Video Compression Format

H.264

Video System

NTSC / PAL

GUI OSD

YES

Video Input

8CH BNC input(composite video signal 1Vp-p 75Ω BNC)

Video Output

1CH VGA/1CH HDMI/1CH BNC

Audio Input/Output

1CH audio input,1CH audio output(RCA)

Maximum Recording Rate

                                  1080P:1920×960 pixels with 30FPS <NTSC>

Image Quality Setting

Supper Best, Well, Good, Medium, Normal and Bad

Hard Disk Storage

Support 1 SATA HDD

Alarm Input/Output

NO

Multiplex Operation

Live display/record/playback/backup/network transmit

Recording Mode

Manual/Timer/Motion/Alarm

Playback Mode

Multiple slow and rapid play speeds, manual and single-frame play modes, and support of drag the sliding bar to set.

Backup Device

USB flash drive, USB hard disk and network backup

Pre-alarm Recording

Recording for 10 seconds before alarming

Network Protocol

TCP/IP, PPPOE , DDNS and NTP

Ethernet remote view

Support remote surveillance up to 10 users simultaneously

CMS software

YES

Mobile phone View

YES

Leds

36pcs IR  Leds

VGA Interface

YES

IR  Distance

  30M

Lens

3.6mm  fixed  lens

IR Remote control

YES

Video Loss Detection

YES

Video Adjustable

Hue /Saturation /Contrast /Brightness adjust

PTZ Control

YES

USB Mouse

YES

Power Source

12V/2A

Key Lock(Password Protection)

YES

Power-down recovery function

YES

Size(mm)

260(L) x 44(H) x 221(W)



Company Information

Tollar security equipment co.,ltd is one of the fast growing cctv manufactures in china,We are a modernized Hi-tech enterprise that specializes in developing high quality security products,combining both manufacturing and sales.
We deal in all kinds of CCTV cameras such as camera module,different types analog cameras,HD-Analog(CVI,AHD,TVI),IP,PTZ Speed Dome camera,dvr,nvr knit etc cameras,all our products have been certified by CE,FCC,ROHS.
Now our products have been successfully exported to over 100 countries,obtained full OEM/ODM experience,gained huge share of the market and popularity.
